产品摘要:

This glaze line suitable for 600-800 tile production,including supporting parts (width 1000mm), pullet, belt (standard or deform) and protecting device, light pole and electric control system (cycloidal + inver control);breaker and contactor adopts SIEMENS product, PLC adopts OMRON product, supporting frame adopts 2pcs 90×56×6㎜ unequal angle bar connecting,driving bearing adopts FUJIAN UCP208 BEARING fixed,**group protecting device driving belt and motor,wetting booth adopts φ18 round belt driving, turning machine useφ18 round belt driving.


产品描述

W1000/6 belts glaze line
①This glaze line suitable for 600-800 tile production,including supporting parts (width 1000mm), pullet, belt (standard or deform) and protecting device, light pole and electric control system (cycloidal + inver control);breaker and contactor adopts SIEMENS product, PLC adopts OMRON product, supporting frame adopts 2pcs 90×56×6㎜ unequal angle bar connecting,driving bearing adopts FUJIAN UCP208 BEARING fixed,**group protecting device driving belt and motor,wetting booth adopts φ18 round belt driving, turning machine useφ18 round belt driving.

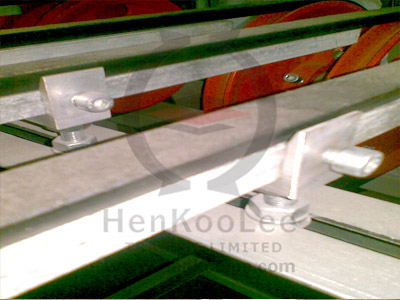

②alumium support groove clip
③angle frame:#-type angle frame, welding of 50x100 retangle squar pipe

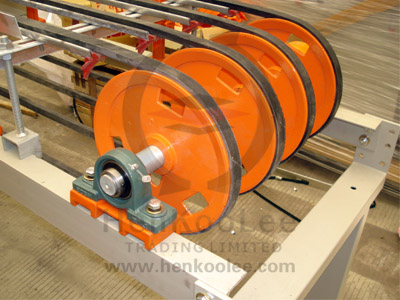

④pullet:Ф260C type(material:HT200)
⑤bearing dia.:Ф50㎜(45# steel),bearing with tray FUJIAN UCP208
⑥belt:6 pcs C-type belt(GUANGZHOU)
⑦bracket:16×16 squar steel structure, with bracket clips
⑧control type:photounit and OMRON PLC control tile linage
